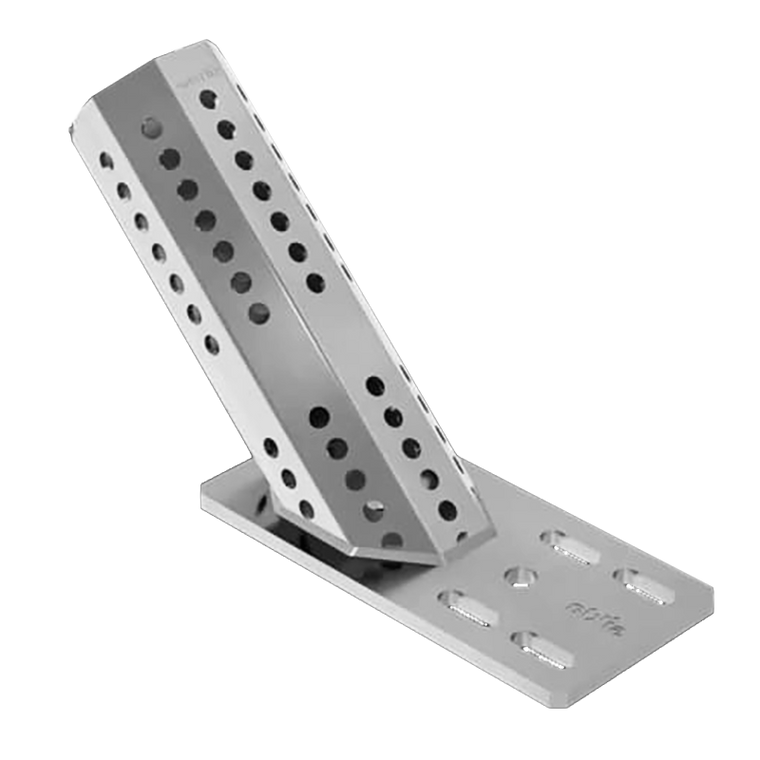

End Support STA F 100-80-E 45°
$132.28
Application
The End Support STA F 100-80-E 45° is designed to generate a 45° bracing element in combination with F100 Beam Sections or F100 Cantilever Brackets.
Installation
Depending on the situation on site there are two options to use this product:
| a) | Connection within the siFramo system by connecting with 4 FLS screws to each beam section F100. |
| b) | Connection to building fabric by using 2 suitable wall anchors in diagonal configuration. |
Technical Data
| Type | L [mm] |
B [mm] |
L1 [mm] |
d [mm] |
b1 [mm] |
h1 [mm] |
α [°] |
|---|---|---|---|---|---|---|---|
| STA F 100-80-E 45° | 210 | 100 | 244.5 | 14 | 11 | 20 | 45 |
| Configuration: | Base Plate welded to octagonal F 80 |
| Material: | Steel, HCP |
- Quote Only:
- Yes
