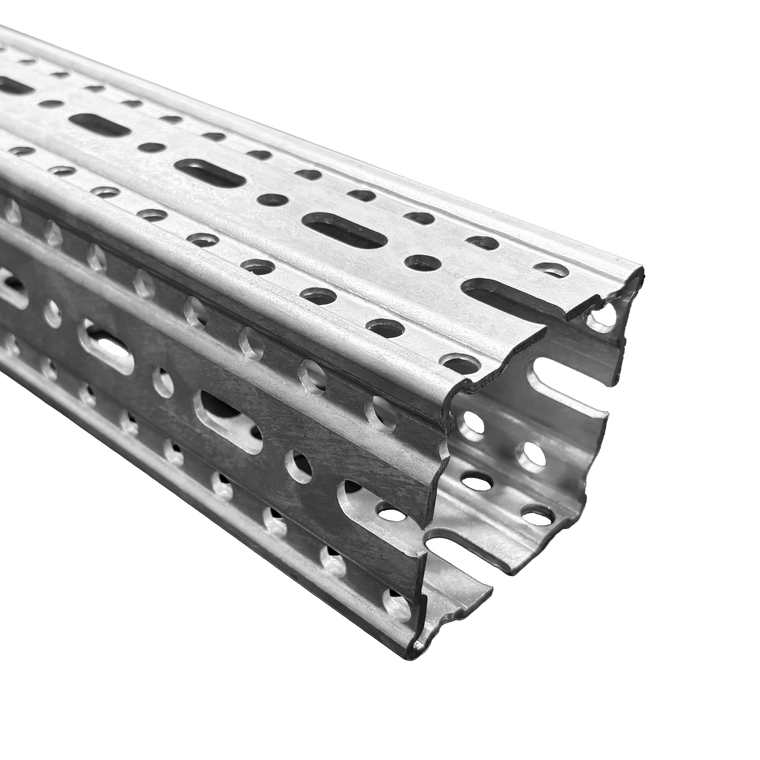

Beam Section TP F 80 image

Beam Section TP F 80

Please contact us for current pricing and availability.

Current Stock:

This product is only available for quote

Description

Application

Galvanised hollow-box-section for fabrication of steel frames. Designed for both simple two-dimensional supports and complex volumetric arrangements. Holes designed to receive Self Forming Screw FLS in conjunction with the relevant component.

Technical Data

Type Section modulus
[cm3 ]		 Moment of inertia
[cm4 ]		 Radius of inertia
[cm]		 Torsional moment lt
[cm4 ]		 Cross section A
[cm2 ]
TP F 80 Wy: 15.83
Wz: 15.83		 ly: 62.47
lz: 62.47		 iy: 3.58
iz: 3.58		 48.40 4.85
TP F 80/30 Wy: 10.38
Wz: 4.78		 ly: 35.40
lz: 6.74		 iy: 3.63
iz: 1.58		 8.58 2.69

Mechanical properties shown above take into account perforations.

The specific values are effective values established by tests, geometrical quantities (analytically determined) can be significantly higher.

Material: Steel, hcp



View the Sikla Assembly Guidelines here
