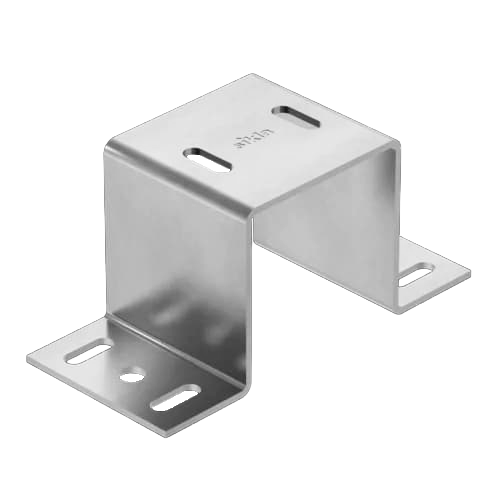

Beam Section Holder TPH F 80

Beam Section Holder TPH F 80

$22.48 - $44.52
Current Stock:

This product is only available for quote

Description

Application

Interface element to connect 90° intersecting Beam Sections F80. Alternatively the Beam Section Holder TPH may be used to connect only one beam section to an even surface with suitable wall anchors or with cast-in channel accessories.

Installation

Connecting one Beam Section TP F 80 90° to another one by using 6 x Self Forming Screw FLS F applied through all elongated holes. Connecting to any other surface or member by using 2 x Self Forming Screws FLS F through the two elongated Slots on the top of the Beam Section Holder TPH F 80 plus 2 appropriate fixing elements up to 1/2" (M12) through the two holes “d1”.

Technical Data

Type Dimensions L x b x s Ø d1 (in) Elongated Slot LL (1) d x a (in) Elongated Slot LL (2) d x a (in) Perm. load under 90° to beam axis Fy = Fz (kip)
TPH F 80 7-1/8" x 1-15/16" x 1/6" 1/2" 7/16" x 13/16" - 1.57
TPH F 80 C 7-13/16" x 3-1/8" x 1/6" 9/16" 7/16" x 13/16" 7/16" x 13/16" 2.25



Type Dimensions L x b x s (mm) Ø d1 (mm) Elongated Slot LL(1) d x a (mm)  Elongated Slot LL(2) d x a (mm)
TPH F 80/30 181 x 50 x 4 13 11 x 20 -
TPH F 80/30 C 199 x 80 x 4 14 11 x 20 11 x 20
TPH F 80 181 x 50 x 4 13 11 x 20 -
TPH F 80 C 199 x 80 x 4 14 11 x 20 11 x 20



Type Fx (kN) Fy (kN) Fz (kN) My (kNm) Mz (kNm)
TPH F 80/30 6.2 20.8 13.6 0.9 0.9
TPH F 80/30 C  6.2 12.7 12.3 0.6 0.5
TPH F 80 6.2 20.8 13.6 0.9 0.9
TPH F 80 C 6.2 12.7 12.3 0.6 0.5


View the Sikla Assembly Guidelines here
