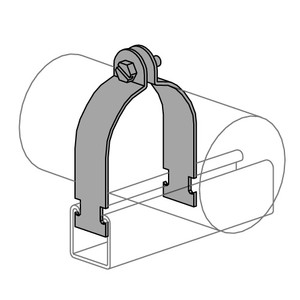

P1109 thru P1126 - Pipe Clamps for Rigid Steel Conduit

SKU:
P1109 EG
$1.50
Also available in the following finishes: Copper Coated, Aluminum, Defender, Hot Dip Galvanized, 304 Stainless Steel, and 316 Stainless Steel. Please contact us for pricing and availability.
Download Pipe Clamp Catalog
Current Stock:
Description

Material:

  • The steel meets or exceeds the physical properties of ASTM A1011 GR 33, except with SS, ST & AL finishes.

Finishes:

  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1
  • Unistrut Defender (DF):  Conforms to ASTM A1059
  • Hot Dip Galvanized (HG):  Conforms to ASTM A123 or A153
  • Perma-Gold (ZD):  Conforms to ASTM B633, Type II SC1 or SC3
  • Everdur (E EG): TBD
  • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
  • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
  • Aluminum (AL): TBD

* These materials have different physical properties and performance characteristics. Please contact us for design support.

Material & Finish Combinations:

Material / Finish
Part Number
Suffix
Pipe Clamp
Material / Finish
Fasteners (Screw & Nut)
Material / Finish
Example
Electro-galvanized
EG
EG
EG
P1109 EG
Hot-dipped galvanized
HG
HG
SS
P1109 HG
Unistrut Defender
DF
DF
DF
P1109 DF
Stainless Steel Type 304
SS
SS
SS
P1109 SS
Stainless Steel Type 316
ST
ST
SS
P1109 ST
Aluminum
AL
AL
AL
P1109 AL
Copper Coated
CC
CC
CC
P1109 CC
Everdur
E EG
EG
E
P1109E EG




Installation:

  • Torque:

Note: When tightening 1/4" screws used with a two piece pipe clamp, a torque of 5 ft-lbs (60 in-lbs) should be used.

View design load report here

View stainless steel design load report here

View the EMT Clamp Hardware memorandum here

View the Pipe & GRC Clamp Hardware memorandum here

View the Clamp Height and Hardware OD Tubing doc here

View the Clamp Height and Hardware Pipe and Rigid Conduit doc here
