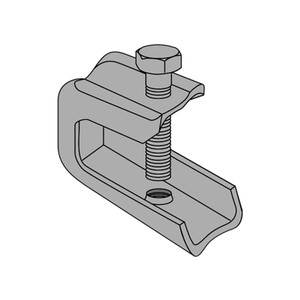

P1648S - Beam Clamp image

P1648S - Beam Clamp

SKU:
P1648S EG
$63.25
Download General Fittings Catalog
Current Stock:
Description

Design Load:  650 lbs (2.89 kN) each

Notes:

  1. Design loads only apply to Unistrut brand products. Look for "UNISTRUT" on the part.
  2. Safety factor = 2.5 based on ultimate strength of connection.
  3. Set Screw Installation Torque:

P1648S, P1649S:  60 in-lbs (7 N-m)
P1650S, P1651S:  125 in-lbs (14 N-m)
P1652S, P1653S:  250 in-lbs (28 N-m)

View the EMT Clamp Hardware memorandum here

View the Pipe & GRC Clamp Hardware memorandum here

View the Clamp Height and Hardware OD Tubing doc here

View the Clamp Height and Hardware Pipe and Rigid Conduit doc here
