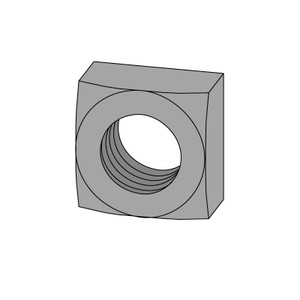

P4908 - Double Adjusting Conveyor Nut image

P4908 - Double Adjusting Conveyor Nut

SKU:
P4908 EG
$2.22
Download Hardware Catalog
Current Stock:
Description

Use With:  Any Channel

Threads:

  • Threads meet the Unified Screw Thread standard, ANSI B1.1, coarse series (UNC) class 2.
  • Channel Nuts are also available in many standard metric sizes. Contact us for ordering information.

Design Bolt Torque:

View the Channel Nut & Bolt Torque Values memorandum here

Bolt Torque Table

Materials & Finishes - Standard:

  • Base Metal: Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1
  • Unistrut Defender (DF):  Conforms to ASTM A1059
  • Hot Dip Galvanized (HG):  Conforms to ASTM A123 or A153
  • Perma-Green (GR):  Conforms to commercial standards for powder coating
  • Perma-Gold (ZD):  Conforms to ASTM B633, Type II SC1 or SC3
  • Plain (PL):  No finish

Materials & Finishes - Special Metals:

  • Stainless Steel, Type 304 (SS):  Conforms to ASTM A240 or A276, Type 304 *
  • Stainless Steel, Type 316 (ST):  Conforms to ASTM A240 or A276, Type 316 *
  • Aluminum (AL):  Conforms to ASTM B209, Type 1100F or 5052-H32 *

* These materials have different physical properties and performance characteristics. Please contact us for design support.

Downloads
Download STP File(s)
Download SAT File(s)
Download DXF File(s)
Download DWG File(s)
Additional Information
