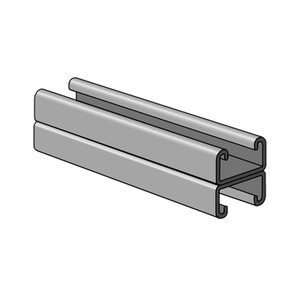

P7000 - 13/16" x 13/32", 19 Ga, Channel

Standard Lengths:

• 10 feet:  10' ± ¹/₂" (13 mm)
• 16 feet:  16' ± ¹/₂" (13 mm)

Load Data:

• All beam and column load data pertains to carbon steel and stainless steel channels.
• Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
• Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
• Loads are based on 33 ksi steel cold formed to 42 ksi.
• Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
• Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide.
• For bearing loads, reference our bearing loads page.

Welds:

• Welded channels are spot welded 2" (51 mm) or 3" (76 mm) on-center.

Materials & Finishes - Standard:

• Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
• Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
• Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
• Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
• Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
• Plain (PL):  Conforms to ASTM A1011 SS GR 33

Materials & Finishes - Special Metals:

• Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
• Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
• Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

* These materials have different physical properties and performance characteristics. Please contact us for design support.
