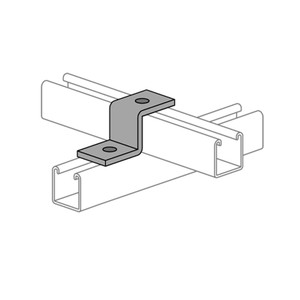

P7045 - Z Shape Fitting (13/16" Series) image

P7045 - Z Shape Fitting (13/16" Series)

$7.61
Download 13/16 Framing Catalog
Current Stock:
Description

Standard Dimensions:

  • Hole Diameter:  9/32"  (7.1mm)
  • Hole Spacing (From End):  13/32"  (10.3mm)
  • Hole Spacing (On-Center):  1 1/16"  (27.0mm)
  • Width:  13/16"  (20.6mm)
  • Thickness:  1/8"  (3.2mm)
