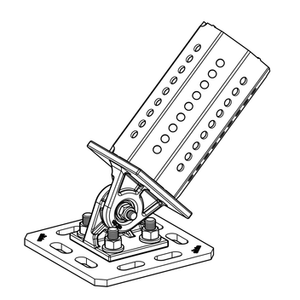

Pivot Joint GE F 100 image

Pivot Joint GE F 100

$125.68 - $201.80
Current Stock:

This product is only available for quote

Description

Application

Applicable as a bracing element for single-arm cantilevers in conjunction with siFramo 100 section, and for the knee-brace reinforcing of siFramo frame constructions. The pivot can be installed with angles from 25° to 155°.

Installation

Attachment of the Joints to Beam Section TP F 100 by means of 4 Self Forming Screws FLS F at the base plate. The support profile TP F 80 or TP F 100 (depending on joint type) plugged onto the octagon is also attached by means of 4 Self Forming Screws, so 8 Self Forming Screws are necessary in total.
After installation at the desired angle the screws have to be tightened with 40 Nm.

Technical Data

Type Height H (mm) Length L (mm) Width B (mm) Angle α Dimensions of Base Plate (mm)
GE F 100 - 80 140 100 100 25° - 155° -
GE F 100 - 80 q 140 100 80 25° - 155° 210 x 100 x 8
GE F 100 - 100 180 100 100 25° - 155° -
GE F 100 - 100 q 180 100 100 25° - 155° 210 x 100 x 8



Material: Steel, HCP

View the Sikla Assembly Guidelines here

Additional Information
Quote Only:
Yes
