Square Coupling PK F 100 4kt HCP image

Square Coupling PK F 100 4kt HCP

$172.22
Current Stock:

This product is only available for quote

Description

Application

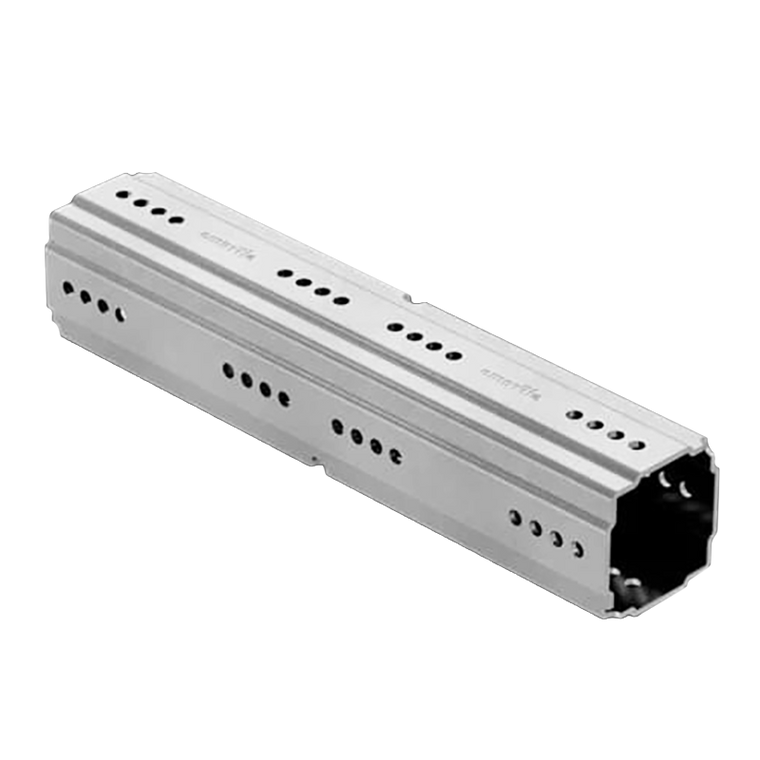

Internal splice connecting element for TP F 100 Beam Section, particularly suitable for vertical extension. Should the component be used for horizontal application, the bending moment needs to be considered.

Installation

To be fastened with 2 x 4 FLS F Self Forming Screws. For optimal bending moment, distance between screws to be as far from each other as possible.

Note:
Self Forming Screw FLS F to be fastened on two sides with a distance of minimum of 100mm and to be fastened symmetrically.
To optimise the bending moment the FLS F should be installed to maintain the pipe weight of the effective flow - i.e. screws are located top and bottom for horizontal cross bars not sideways.

Technical Data

Type L
[mm]		 H
[mm]		 B
[mm]		 Fmax
[kN]		 Mbmax
[kNm]
PK F 100 4kt 442.5 90 90 10.0 0.5



Material: Steel, HCP



View the Sikla Assembly Guidelines here

Additional Information
Quote Only:
Yes
