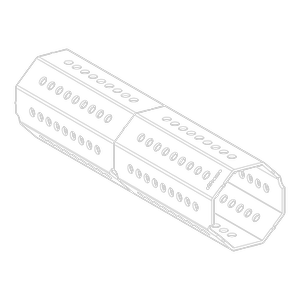

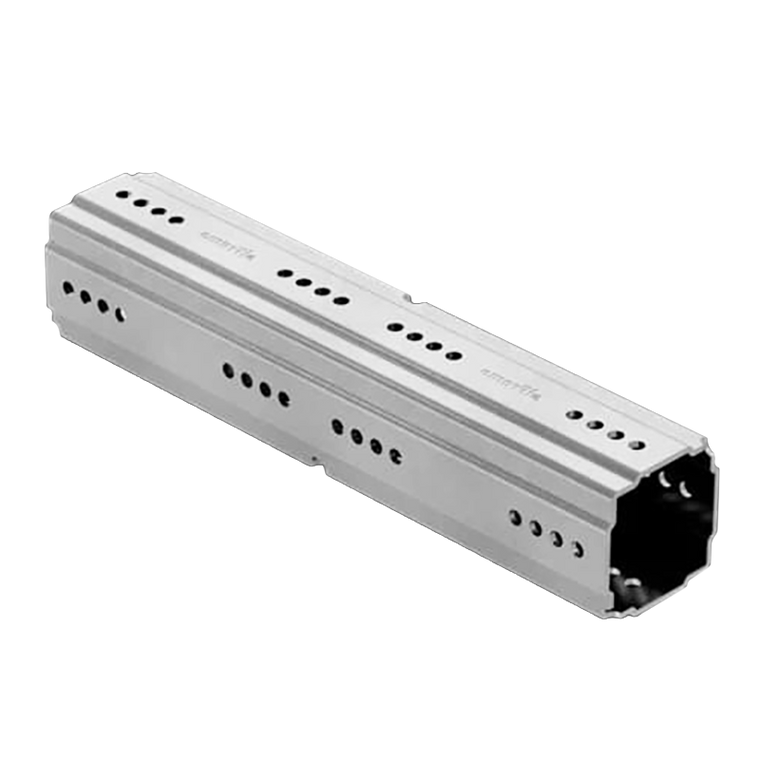

Square Coupling PK F 80 HCP
$93.42
Application
Internal splice connecting element for Beam Section TP F 80, particularly suitable for vertical extension. Should the component be used for horizontal application, the bending moment needs to be considered.
Installation
To be fastened with 2 x 4 FLS F Self Forming Screws. For optimal bending moment, distance between screws to be as far from each other as possible.
Notice:
Self Forming Screw FLS F to be fastened on two sides with a distance of minimum of 3 15/16" (100mm) and to be fastened symmetrically. To optimise the bending moment the FLS F should be installed to maintain the pipe weight of the effective flow - i.e. screws are located top and bottom for horizontal cross bars not sideways.
Technical Data
| Type | L (mm) | H (mm) | B (mm) | F max (kN) | Mb max (kNm) |
| PK F 80 4kt | 382 | 73 | 73 | 10.00 | 0.5 |
Material: Steel, HCP
- Quote Only:
- Yes
