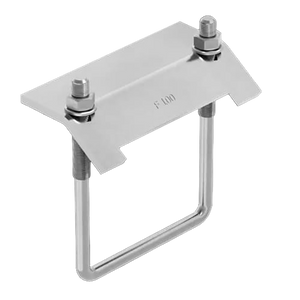

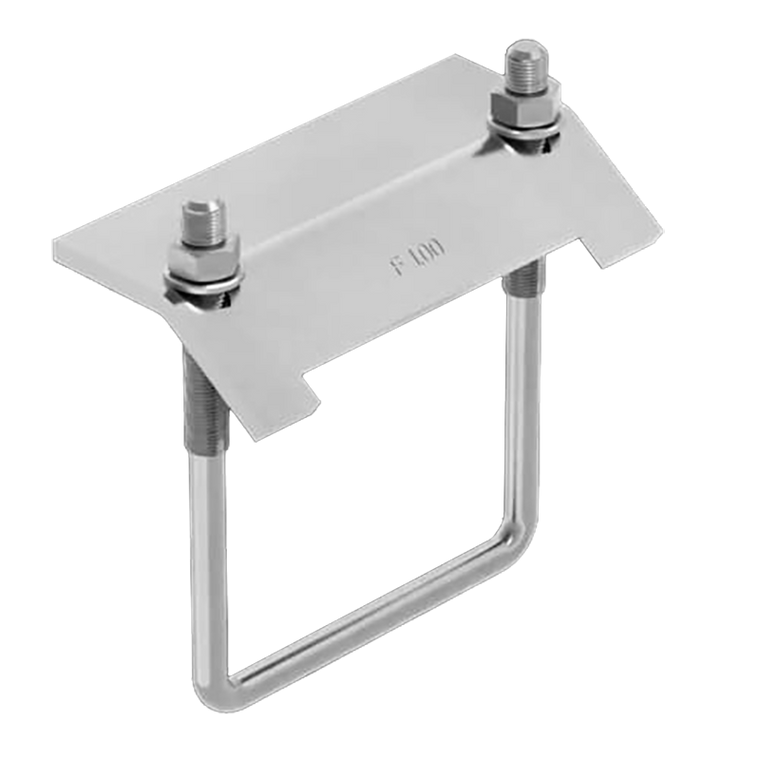

U-Holder SB F 100-16 image

U-Holder SB F 100

$39.26 - $108.10
Current Stock:

This product is only available for quote

Description

Application

Pre-assembled component to clamp Beam Section F100 to the flange side of traditional steel sections.

Scope of delivery

Type SB F 100-16:
Holder with thread M10
Plate
2 Hexagon nuts M10
2 Washers

Type SB F 100-40 and 100/160-40
Holder with thread M12
Plate
2 Beam Clips SPA 5P AU
2 Hexagon nuts M12

Installation

U-Holder to be used in pairs.
Type 16 up to flange thickness 16 mm
Type 40 up to flange thickness 40 mm

Technical Data

Type Thread Tightening torque
[Nm]		 Fz
per U-Holder [kN]		 Fy
[kN]		 My
[kNm]		 Mz
[kNm]
SB F 100-16 M10 40 9,5 * * *
SB F 100-40 M12 85 16 * * *
SB F 100/160-40 M12 85 16 * * *



* Please compare the suitable type's dimensions by means of the Simotec user guideline to get the permissible lateral forces and torques.

Material: Steel, FK 8.8, HCP



View the EMT Clamp Hardware memorandum here

View the Pipe & GRC Clamp Hardware memorandum here

View the Clamp Height and Hardware OD Tubing doc here

View the Clamp Height and Hardware Pipe and Rigid Conduit doc here

View the Sikla Assembly Guidelines here

Additional Information
Quote Only:
Yes
