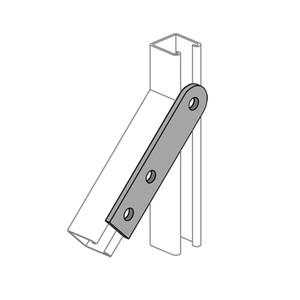

A1063 - Flat Fitting (1-1/4" Series) image

A1063 - Flat Fitting (1-1/4" Series)

$2.89 - $4.34
Download 1 1/4 Framing Catalog
Current Stock:
Description

Standard Dimensions:

  • Hole Diameter:  13/32"  (10.3mm)
  • Hole Spacing (From End):  5/8"  (15.9mm)
  • Hole Spacing (On-Center):  1 1/2"  (38.1mm)
  • Width:  1 1/4"  (31.8mm)
  • Thickness:  3/16"  (4.8mm)

Materials & Finishes:

  • Base Metal: Steel conforms to ASTM A1011 SS GR 33
  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1
  • Perma-Green (GR):  Conforms to commercial standards for powder coating
Downloads
Download STP File(s)
Download SAT File(s)
Download DXF File(s)
Additional Information
