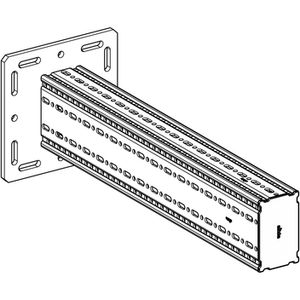

Beam Bracket TKO F 100/160
$587.82 - $695.44

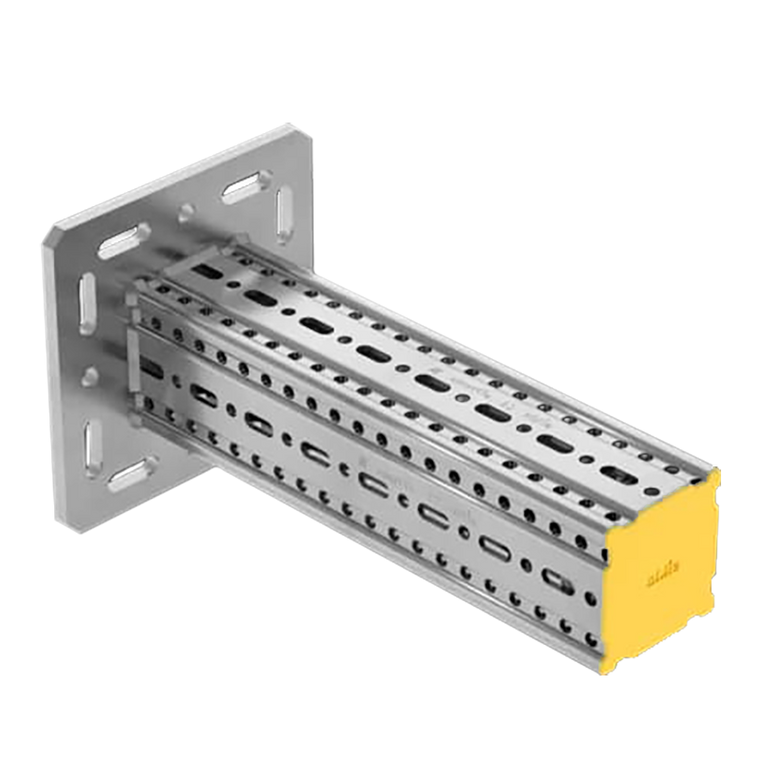

Beam Bracket TKO F 100
$300.36 - $517.32
Application
Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA/End Support WBD and 4 x Self Forming Screw FLS.
Scope of delivery
With pre-assembled End Cap ADK F100
Installation
Depending on the situation, different options are recommended:
| a) | Directly to building structure: 4x suitable wall anchors. |
| b) | To traditional steel beams between 80 - 120 mm flange dimensions: with Assembly Set 5P M12 S. |
| c) | To traditional steel beams > 120 flange dimension: with on-demand Adaptor Plate (tbc) |
| d) | To Sikla Simotec Steel Beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required. |
Technical Data
| Type | L [mm] |
Dimensions of base plate [mm] |
Slots in base plate for |
|---|---|---|---|
| TKO F 100-400 | 400 | 220 x 220 x 12 | M12 |
| TKO F 100-800 | 800 | 220 x 220 x 12 | M12 |
| TKO F 100-1200 | 1200 | 220 x 220 x 12 | M12 |
| Configuration: | Base plate welded to Beam Section TP F 100 |
| Material: | |
| Plate: | Steel, HCP |
| Beam Section: | Steel, HCP |
- Quote Only:
- Yes
