Beam Bracket TKO F 100/160 image

Beam Bracket TKO F 100/160

$587.82 - $695.44
Current Stock:

This product is only available for quote

Description

Application

Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA/End Support WBD and 4 x Self Forming Screw FLS.

Scope of delivery

With pre-assembled End Cap ADK F100

Installation

Depending on the situation, different options are recommended:

a) Directly to building structure: 4x suitable wall anchors.
b) To traditional steel beams between 100 - 180 mm flange dimensions: with Assmebly Set 5P M12 S.

Technical Data

Type L
[mm]		 Dimensions of base plate
[mm]		 Slots in base plate for
TKO F 100/160-800 800 280 x 280 x 12 M12
TKO F 100/160-1200 1200 280 x 280 x 12 M12

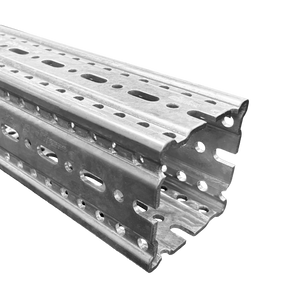

Configuration: Base plate welded to Beam Section TP F 100/160
Material:
Base plate: Steel, HCP
Beam Section: Steel, HCP



View the Sikla Assembly Guidelines here

Additional Information
Quote Only:
Yes
