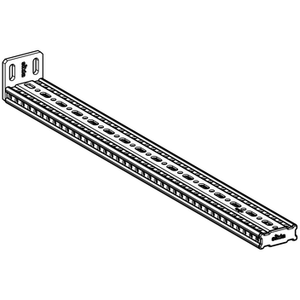

Cantilever Bracket AK F 80/30-Q image

Cantilever Bracket AK F 80/30-Q

$127.66 - $201.80
Current Stock:

This product is only available for quote

Description

Application

Galvanised box-section with welded end-plate to serve as cantilever
arm for Beam Section TP F 80 or Beam Bracket TKO F 80.
Solid cantilevers e.g. for cable containment when fixed to walls with suitable
wall anchors M12.

Installation

With 4 x Self Forming Screw FLS when fixed to another siFramo hollowbox-
section. Fixing to walls and ceilings with suitable wall anchors M12.

Technical Data

Type Dimensions of
base plate [mm]		 L
[mm]		 d
[mm]		 b1 x l1
[mm]
AK F 80/30-Q-400 190 x 80 x 8 400 14 11 x 20
AK F 80/30-Q-800 190 x 80 x 8 800 14 11 x 20



Material: Steel, HCP


View the Sikla Assembly Guidelines here

Additional Information
Quote Only:
Yes
