End Support STA F 80
$65.70 - $66.80
End Support STA F 80/30-Q
$54.84
Application
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 80 or TP F 80/30. A connection to Cantilever brackets AK F 80 or AK F 80/30 can also be realised e.g. for cable trays and downpipes.
Installation
Depending on the situation, different options are recommended:
| a) | With 2 x 4 Self Forming Screws FLS when used to connect 2 Beam Sections. |
| b) | With 4 Self Forming Screws FLS applied to the insert and 2 suitable M12 wall anchors/fixings when connected to the building structure. |
Technical Data
| Type | Dimensions of base plate [mm] |
L [mm] |
d [mm] |
b1 x l1 [mm] |
|---|---|---|---|---|
| STA F 80/30 | 190 x 80 x 8 | 169 | 14 | 11 x 20 |
| Material: | Steel, HCP |
- Quote Only:
- Yes
Related Products
-
-
End Support STA F 80/30
$50.02 -
End Support STA F 80/30 E
$47.12 -

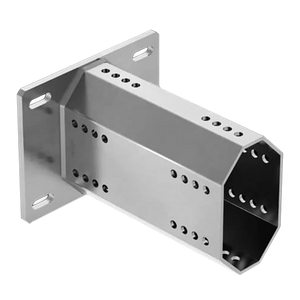

End Support STA F 160-Q
