Channel Adapter SA F 100
$78.50

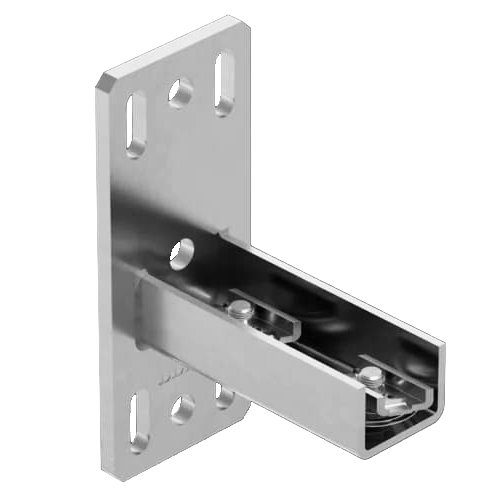

Channel Adapter SA F 80
$74.78
Application
Allows the compatibility of 41 channel system (channel 1 5/8" x 1 5/8" or 1 5/8" x 1 5/8" D) with Beam Section F 80. Simple construction of pipe lines or constructions, optionally with further parts of the Siconnect System. Thanks to the Pressix CC-Technology the channel can be connected directly to the Channel Adapter.
Installation
Interlocking connection to Beam Section F 80 by using 4 Self Forming Screws FLS.
Technical Data
| Type | Dimension of base plate [in] |
Slots in base plate [in] |
|---|---|---|
| SA F 80-41 | 7 1/2" x 3 1/8" x 5/16" | 3/8" |
| Type | Dimension of base plate [mm] |
Slots [mm] |
Round Holes [mm] |
|---|---|---|---|
| SA F 80-41 | 190 x 80 x 8 | 20 x 11 | 14 |
| Configuration: | Base plate welded to U-Profile |
|
Material: |
|
| Plate: | Steel, hcp |
| U-Profile: | Steel, hcp |
