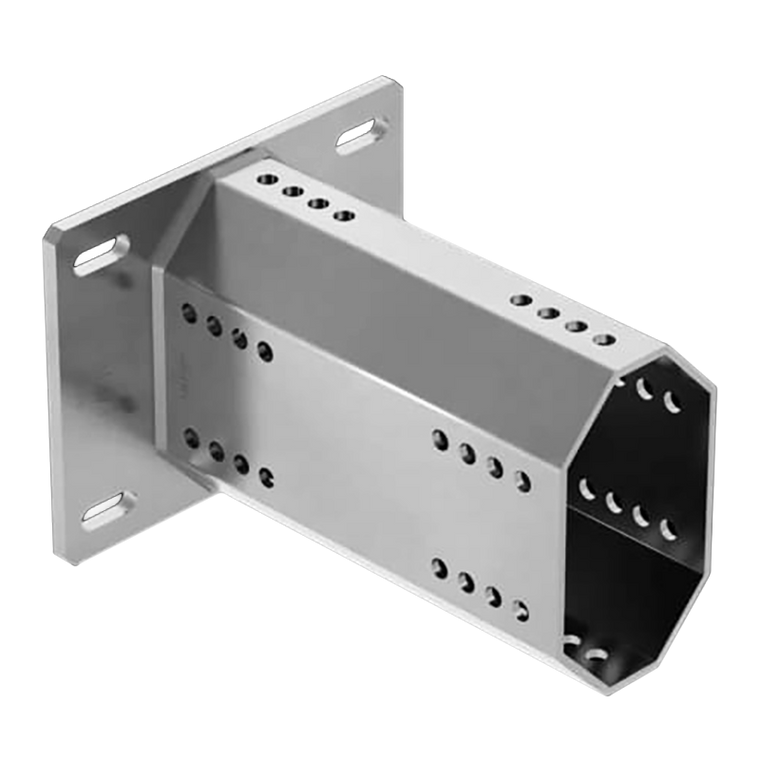

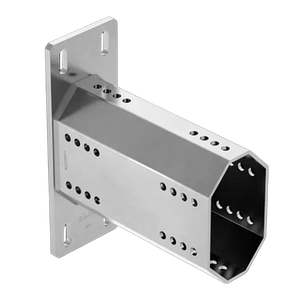

End Support STA F 160-Q

$221.54
Current Stock:

This product is only available for quote

Application

Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100/160.

Installation

For the connection to Beam Section TP F 100/160 (flange side 160) 4 Self Forming Screws FLS F are necessary. The Beam Section TP F 100/160 connected to the End Support STA F 160-Q has to be screwed with 8 Self Forming Screws FLS F. On each of the broader sides 4 Self Forming Screws FLS F are necessary. Fixing to walls and ceilings with suitable wall anchors M10.

Technical Data

Type Dimensions of
base plate [mm]
L
[mm]
b1 x l1
[mm]
STA F 160-Q 160 x 200 230 11 x 20



Configuration: Base plate welded to octagonal F 100/160
Material: Steel, HCP



View the Sikla Assembly Guidelines here

Quote Only:
Yes
