End Support WBD F 100
$220.46 - $340.82

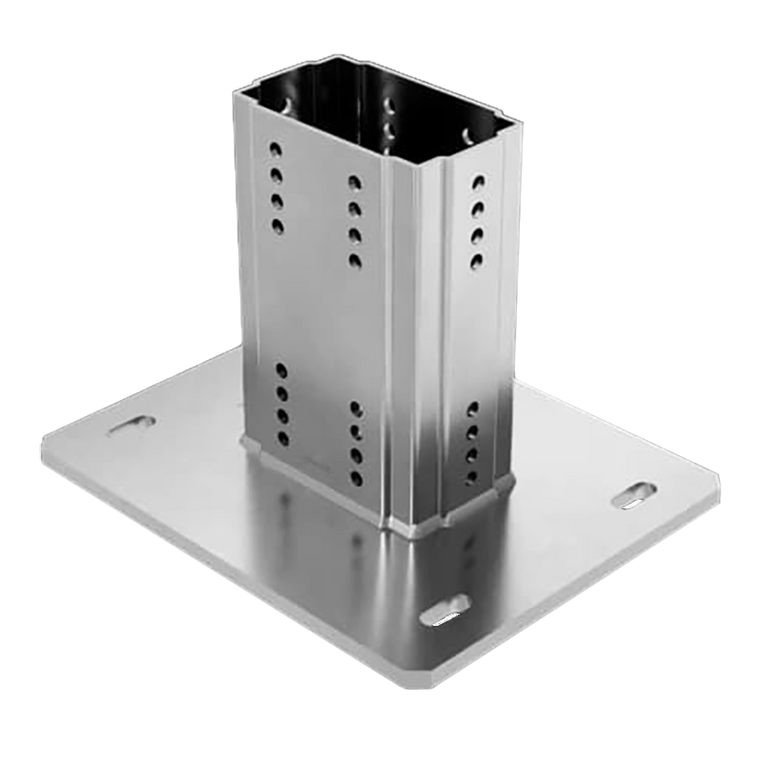

End Support WBD F 100/160
$360.88 - $410.92
Application
Plug-in component designed to create a square endplate at the open end of a Beam Section TP F100 or a Beam Bracket.
Installation
Depending on the situation, different options are recommended:
| a) | Directly to building structure: 4 x suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert. |
| b) | To traditional steel beams between 80 – 300 mm flange dimensions: 1x Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert. |
The Beam Section TP F 100/160 connected to the End Support WBD F 100/160 has to be screwed with 8 Self Forming Screws FLS F. On each of the broader sides 4 Self Forming Screws FLS F are necessary.
Technical Data
| Type | For flange width [mm] |
Dimensions of base plate [mm] |
Slots in base plate for | H [mm] |
|---|---|---|---|---|
| WBD F 100/160-121/160 | 121 - 160 | 320 x 260 x 12 | M12 | 232 |
| WBD F 100/160-161/200 | 161 - 200 | 320 x 310 x 12 | M16 | 232 |
| WBD F 100/160-201/300 | 201 - 300 | 420 x 220 x 12 | M16 | 232 |
| Configuration: | Base plate welded to square F 100/60 |
| Material: | |
| Plate: | Steel, HCP |
| Square F 100: | Steel, HCP |
- Quote Only:
- Yes
