Application

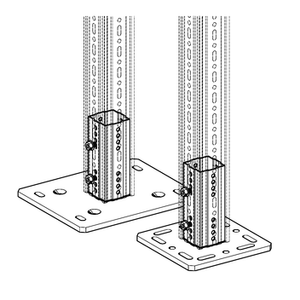

Plug-in component designed to create a square end plate at the open end of a Beam Section TP F80 or a Beam Bracket/Cantilever bracket AK F80. Variation "T" with octagonal insert allows full utilisation of beam section within the space
required by the End Support WBD itself.
Installation
Depending on the situation, different options are recommended:
| a) | Directly to building structure: 4 x suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert |
| b) | To traditional steel beams between 80 – 310 mm flange dimensions: 1 x Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert |
| c) | To Sikla Simotec steel beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required |
The Beam Section TP F 80 connected to the End Support WBD F 80 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are necessary. The permissible distance between base plate WBD and profile must not exceed 30 mm.
Technical Data
| Type | Base Plate Finish | For Flange Width (mm) | Dimensions of base plate (mm) | Slots in base plate (l x b) |
| WBD F 80-80/120 | flat | 80-120 | 220 x 220 x 12 | 30 x 14 |
| WBD-P F 80-121/160 | corrugated | 121 - 160 | 320 x 260 x 12 | 20 x 14 |
| WBD-P F 80-161/200 | corrugated | 161 - 200 | 320 x 310 x 12 | 20 x 18 |
| WBD-P F 80-201/310 | corrugated | 201 - 310 | 420 x 220 x 12 | 55 x 18 |
| WBD F 80-T | flat | 80 - 120 | 220 x 220 x 12 | 30 x 14 |
| Type | e (mm) | L (mm) | t1 (mm) | Slots in base plate for |
| WBD F 80-80/120 | max. distance | 202 | - | M12 |
| WBD-P F 80-121/160 | max. distance | 202 | 27 | M12 |
| WBD-P F 80-161/200 | max. distance | 202 | 27 | M16 |
| WBD-P F 80-201/310 | max. distance | 202 | 27 | M16 |
| WBD F 80-T | max. distance | 152 | - | M12 |
Configuration: Plate welded to square F 80 resp. octagonal element F 80 (only WBD F 80-T)
Material: Steel, HCP
