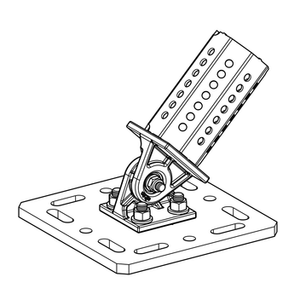

Pivot Joint GE F - ST F 80
$280.54 - $387.82
Insulated Foot SHB SQF F 80
$72.38 - $153.54
Application
Comprehensive solution out of synthetic rubber for flat roofs and central energy supply centers with coated floor. In combination with the Sikla Assembly System siFramo 80 any structures can quickly and simply be realised. The water permeable rubber allows a secure and reliable support with constant load distribution. Particularly suitable for the fixation of aggregates, pipings, ventilation ducts and walkways.
The Beam Section TP F 80 can be mounted to the Insulated Foot SHB SQF F 80.
Installation
Insert the Beam Section TP F 80 into the Insulated Foot's slot.
Technical Data
| Type | max. perm. pressure load FN [kN] |
Height [mm] |
Insertion depth [mm] |
|---|---|---|---|
| SQF 350 | 16 | 100 | 70 |
| SQF 500 | 16 | 130 | 90 |
The system-related static friction must be determined on site. Depending on the roof membrane used, the use of an additional separating layer is recommended. The load introduction into the structure must be checked on site.
| Material: | Styrene butadiene rubber |
- Quote Only:
- Yes
