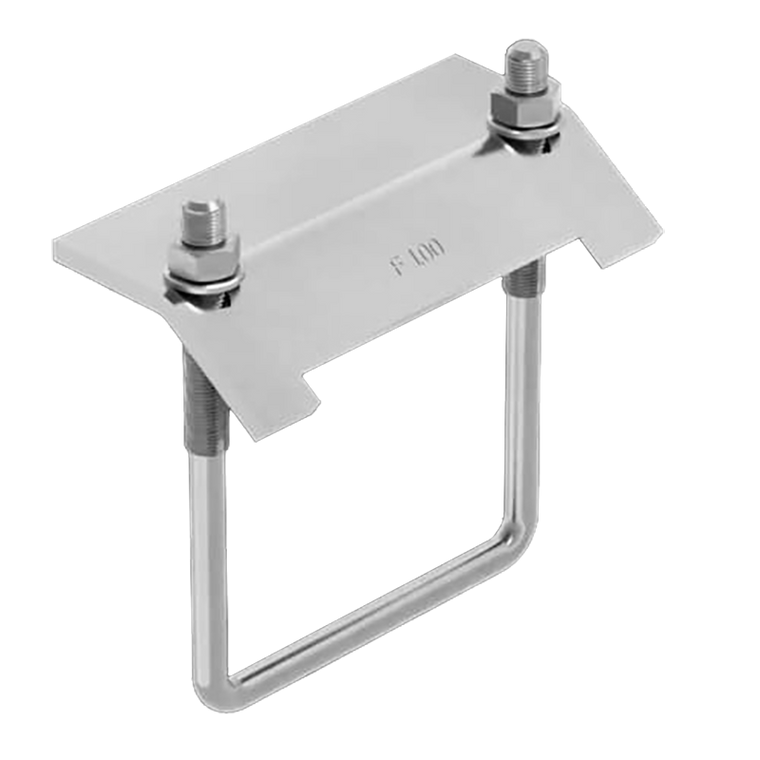

U-Holder SB F 80 image

U-Holder SB F 80

$17.34 - $65.14
Current Stock:

This product is only available for quote

Description

Application

Connecting element for bilateral fixation of Beam Section TP F 80 and F 80/30, crossbars or cantilevers to steel beams.

Scope of delivery

Type SB F 80-16 and F 80/30-16:
Holder with thread 3/8" (M10)
Plate
2 Beam Clips P2
2 Hexagon nuts 3/8" (M10)
2 Washers

Type SB F 80-40 and F 80/30-40:
Holder with thread 1/2" (M12)
Plate
2 Beam Clips SPA 5P AU
2 Hexagon nuts 1/2" (M12)

Installation

U-holder to be used in pairs.
Type 16 up to flange thickness of 5/8" (16 mm)
Type 40 up to flange thickness of 1 9/16" (40 mm)

Technical Data

Type Thread Tightening Torque (Nm) Fz (kN) Fy (kN) My (kNm) Mz (kNm)
SB F 80-16 M10 40 9.5 * * *
SB F 80-40 M12 85 16 * * *
SB F 80/30-16 M10 40 9.5 * * *
SB F 80/30-40 M12 85 16 * * *



* For the permissible cantilever forces and moments, please compare the suitable typical in the corresponding dimension in the Simotec user guidelines.

Material: Steel, FK8.8, HCP

View the Sikla Assembly Guidelines here

Additional Information
Quote Only:
Yes
