Beam Bracket TKO F 100
$300.36 - $517.32
Beam Bracket TKO F 80
$214.78 - $270.24

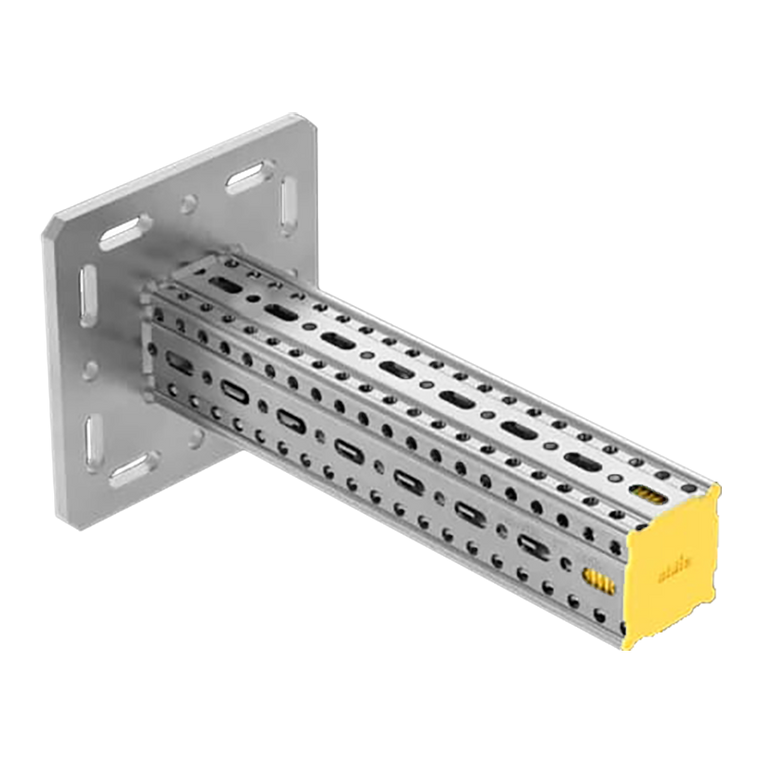

Application
Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA/End Support WBD and 4 x Self Forming Screw FLS .
Scope of delivery
With pre-assembled End Cap ADK F 80.
Installation
Depending on the situation, different options are recommended:
| a) | Directly to building structure: 4 x suitable wall anchors |
| b) | To traditional steel beams between 80 – 120 mm flange dimensions: 1x Assembly Set 5P M12 S |
| c) | To traditional steel beams > 120 flange dimension: with on-demand Adaptor Plate (tbc) |
| d) | To Sikla Simotec Steel Beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required |
Technical Data
| Type | L [mm] |
Dimensions of base plate [mm] |
Slots in base plate for |
|---|---|---|---|
| TKO F80-400 | 400 | 220 x 220 x 12 | M12 |
| TKO F80-800 | 800 | 220 x 220 x 12 | M12 |
| Configuration | Base plate welded to Beam Section TP F 80 |
| Material: | |
| Base plate: | Steel, HCP |
| Beam Section: | Steel, HCP |
- Quote Only:
- Yes
Related Products
-
-
Beam Bracket TKO F 100/160
$587.82 - $695.44 -
-
Corner Bracket WD F 80
$72.04
